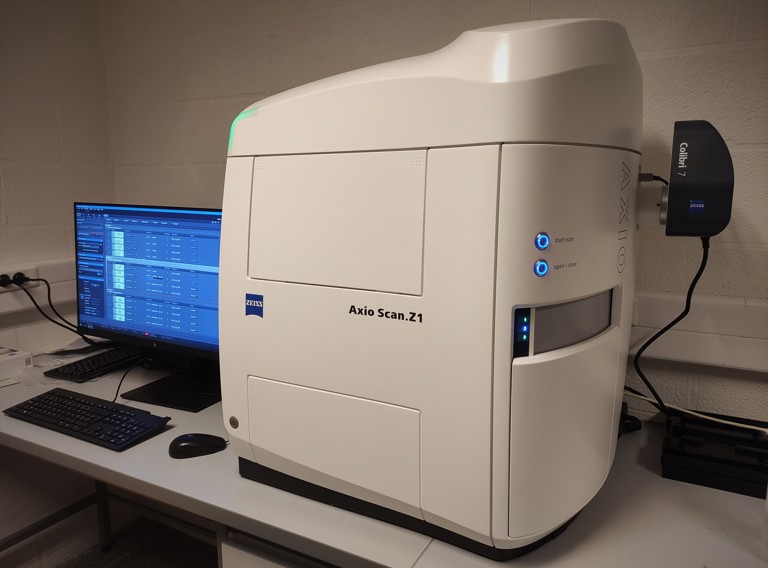

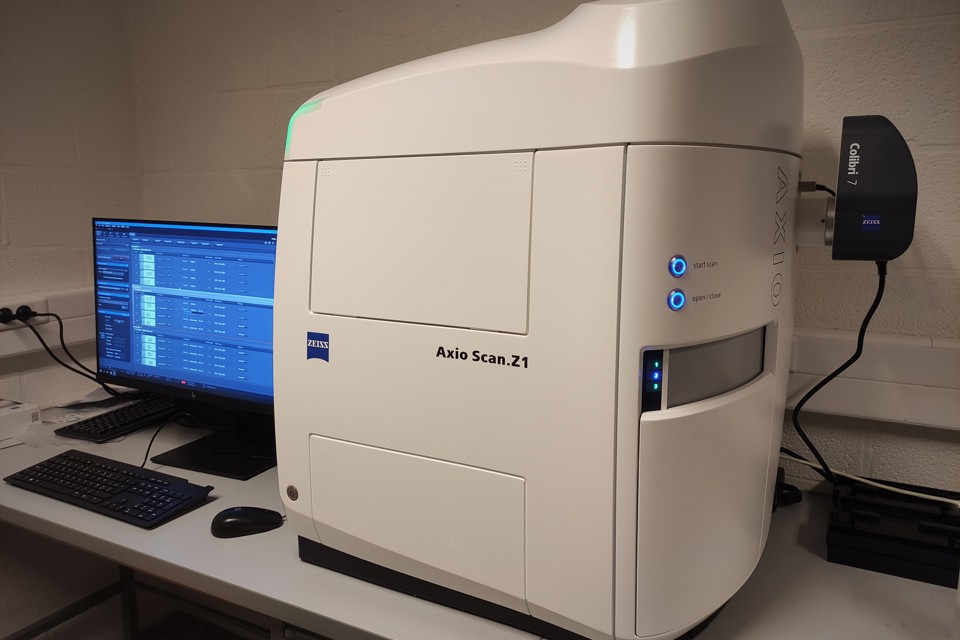

Zeiss Axioscan Z.1
Increase the throughput of your experimental workflow with this fully automated whole slide scanner. Equipped with a multicolor LED lightsource, high resolution lenses, automated focussing and positioning control, and high quality detection optics, the upright microscope captures brightfield and fluorescence images of outstanding quality. The ZEN software suite allows simple and automated digitization of your (large) samples.
Use and training
The Axioscan Z.1 slidescanner is managed outside the AOMC, but is still accessible for external users. Depending on the experimental needs and design, AOMC will redirect users to this setup. To access this microscope, contact the facility to schedule a hands-on training session. Training for the Axioscan Z.1 is done on a case-by-case basis by the setup responsible. Trained users can get 24/7 access to the microscope and are free to schedule experiments using the online booking system.
Specifications
Excitation and emission
- Lightsource: Colibri 7, type R[G/Y]B-UV
- 631/33 nm
- 590/27 nm
- 555/30 nm
- 469/38 nm
- 385/30 nm
- Filter set 90 HE LED (E):
- beamsplitter: QBS 405 + 493 + 575 + 653
- emission: QBP 425/30 + 514/30 + 592/25 + 709/100
- Filter set 64 HE mPlum shift free (E)
- beamsplitter: FT 605 (HE)
- emission: BP 647/70 (HE)
Lightsource & filtercube | Excitation | Beamsplitter | Emission | Common fluorophores |
|---|---|---|---|---|
Colibri 7 - UV | 385/30 | QBS 405/493/575/653 | QBP 425/30 + 514/30 + 592/25 + 709/100 | DAPI |
Colibri 7 - B | 469/38 | QBS 405/493/575/653 | QBP 425/30 + 514/30 + 592/25 + 709/100 | Alexa Fluor 488 |
Colibri 7 - G | 555/30 | QBS 405/493/575/653 | QBP 425/30 + 514/30 + 592/25 + 709/100 | Alex Fluor 555 |
Colibri 7 - Y | 590/37 | FT 605 HE | BP 647/70 HE | Alexa Fluor 594 |
Colibri 7 - R | 631/33 | QBS 405/493/575/653 | QBP 425/30 + 514/30 + 592/25 + 709/100 | Alexa Fluor 647 |
Detection
The microscope is equipped with the following detectors:
- Brightfield: 3CCD Hitachi HV-F203SCL (O)
- Fluorescence: Axiocam 506 mono (D)
Objective lenses
The microscope is equipped with a variety of low- and high-magnification and NA objectives:
- Fluar 5x/0.25 M27
- Plan-ApoChromat 10x/0.45 M27
- Plan-ApoChromat 20x/0.80 M27
- Plan ApoChromat 40x/0.95 Corr M27
Accessories
- Magazine for 12 slides 76x26 mm
- 3 x mounting frame for 4 slides 76x26 mm
- Slide loading tool
Features & applications
- Acquisition of histology, immunohistology and immunofluorescence microscopy images.
- Tissue analysis in disease and cancer research.
- Automated quantitative analysis.
- Automated region of interest selection.
